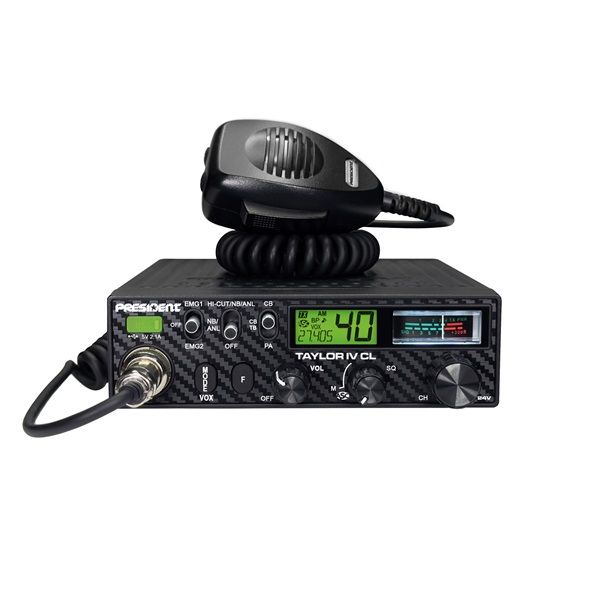

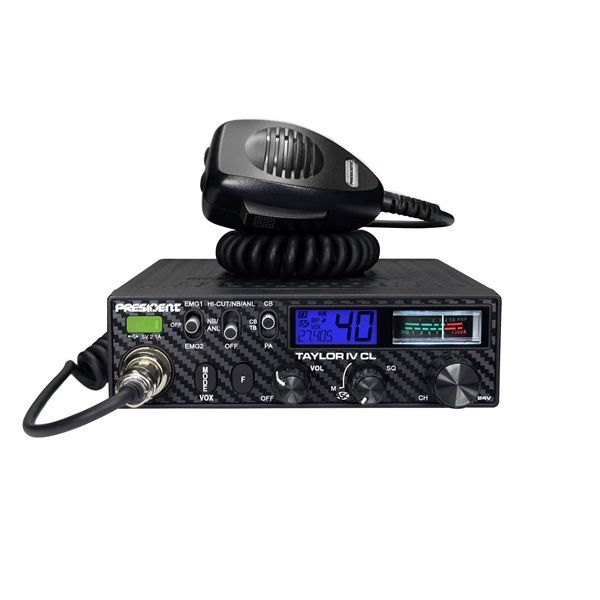

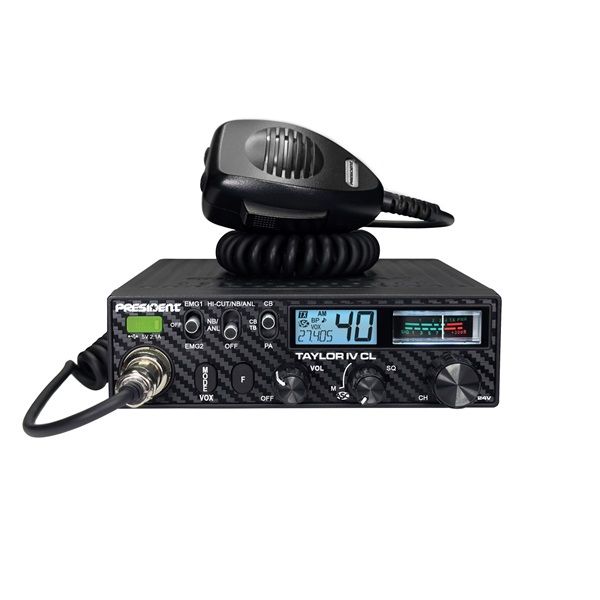

President TAYLOR-4 CL Export
President TAYLOR-4 CL Export
Only @cbshop 2 years warranty on this export model!
20 watt AM FM 120 channels
Especially for the fast guys, President electronics has given the new 2025 Taylor a carbon look.
Not that it is lighter, but we have not had that as standard from President before.
Of course you can also customize all this yourself with many radios, but then you no longer see the white letters.
Because it is a 2025 model, you do have all the latest CB radio techniques in the radio, such as Handsfree, noise suppression with both transmitting and receiving.
EATURES, FUNCTIONS AND SPECIFICATIONS:
Main features:
• Size (mm): 150 (W) x 165 (D) x 45 (H)
• Weight: 750 gram
• Accessories supplied: 1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse
• Antenna socket: SO-239
• Antenna impedance: 50 ohms
• Multiconfiguration: EU / U / D / PL / IN
• Number of channels: 40
• Frequency ranges: from 26.965 MHz to 27.405 MHz
• Power supply: 13.2 V / 26.4 V
• Microphone Up/Down: Activate / Deactivate
• Microphone plug: front (6 pins)
• Compatible microphone type: Electret , Dynamic
• External Vox microphone jack
• External loudspeaker jack
• Public address
• External HP PA socket
• USB socket (front): 5 V / 2,1 A
• Display: LCD multifunction
• Dimmer
• Channel display
• Frequencies display
• S-meter: Vu-meter
• Modulation modes: AM / FM
• Volume adjustment and ON/OFF
• Squelch: Manual squelch
• ASC
• Channel selector: Rotary
• Mode switch
• P CHANNELS
• F / Menu function key
• Key Beep: Switchable
• Roger beep : Switchable
• Channel preselection: 2 , emergency channel (EMG) programmable
• Scan: channels
• Talkback
• Vox
• Automatic SWR meter
• SWR (Power Reading /SWR)
• TOT
• Filter ANL
• Filter NB
• Filter HI-CUT
• NRC
Transmission:
• Frequency allowance: ± 200 Hz
• Carrier power: 20 W (AM/FM)
• Transmission interference: < 4 nW (-54 dBm)
• Audio response: 300 Hz to 3 kHz
• Emitted power in the adj. channel: < 20 μW
• Microphone sensitivity: 3 mV
• Drain: 1.7 A (with modulation)
• Modulated signal distortion: 2%
Reception
• Max. sensitivity at 20 dB sinad: 0.5 μV - 113 dBm (AM/FM)
• Frequency response: 300 Hz to 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 3 W
• Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate frequency rej. rate: 70 dB
• Drain: 500 mA nominal / 800 mA max.
PACKING INCLUDES:
1 Pc of Transceiver
1 Pc of Microphone
1 Pc of Bracket
1 Pc of Mounting materials
1 Pc of User Manual in French, Spanish, English and Polishanual
