Anytone AT-D578UV Plus
Anytone AT-D578UV Plus
The Antone AT-D578UV Plus is a true TWIN band radio for digital DMR radio systems, compatible to MOTOTRBO Tier 1 and 2. Traditional FM is of course equally supported. In contrast to many other DMR radios the AT-D578UV offers real VFO operations, which makes it much more suitable for amateur radio.
True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and II compliant

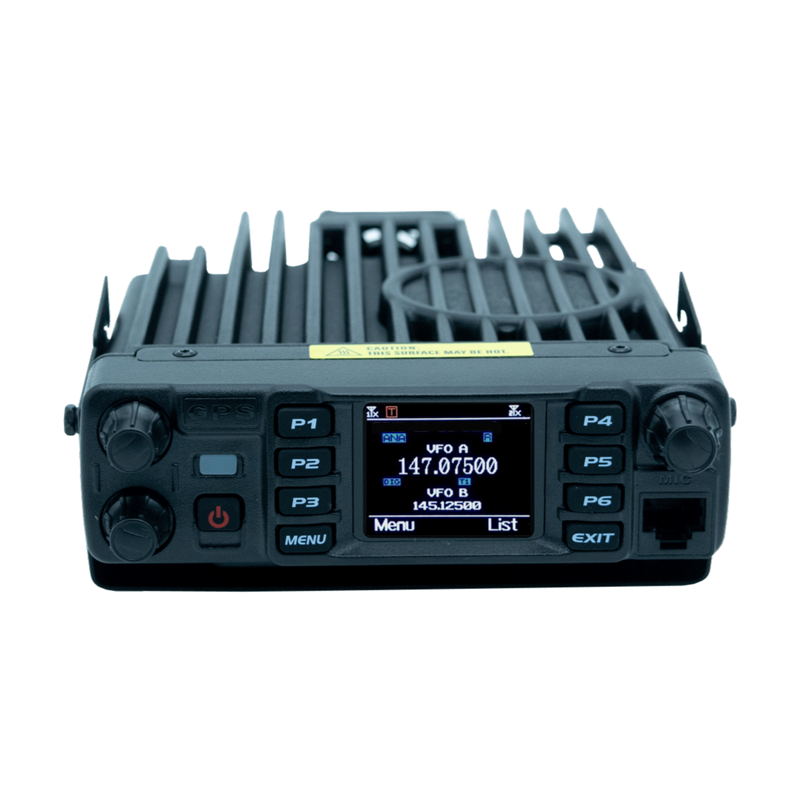

Display: Yes, 1.77 inch TFT color LCD, dual display; dual PA; dual PTT
Bandwidth: 12.5 - 25 kHz Analog / 12.5 kHz DMR
VOX function: Yes, digital recording and play
DTMF: Yes, encode and decode
2-tone/5-tone: Yes, encode and decode
Crossband repeater function: Yes
Ranging function: Yes, between radios with GPS
Roaming function: Talker alias function
AES256 digital encryption: Yes, zone selection
SMS: Yes, with keyboard
Call interrupt: Optional function
Duplexer Talk: Optional function
Connect to Motorola repeater: Yes, with IP
Weather alerts: Yes
Auto-senses: Yes, digital or analog reception
Frequency step: 12.5 kHz / 25 kHz /
Channels: 4000 channels + VFO; 10,000 Talk groups with 200,000 digital contacts
Wide and narrow bandwidth selection: Yes
Phase-locked Step: 5 and 6.25 kHz
Operating temperature: -20℃ to +60℃
Operating voltage: 13.8 Volt
Power supply current requirement: 15 Amps (min)
Transmitter
Power output (Watts): VHF: 5/10/25/55 Watts UHF: 5/10/25/45 Watts
Modulation limit: ± 5.0 kHz @ 25 kHz / ±.2.5 kHz @ 12.5 kHz
Adjacent channel power: Wide: ≤ 70 dB / Narrow: ≤ 60 dB
Spurious Emission: Wide: ≤ -57 dB / Narrow: ≤ -57 dB
Audio distortion: ≤ 5%
Frequency stability: ±2.5 PPM
Hum & noise: Wide: ≤40 dB / Narrow: ≤36 dB
Error rate: ≤ 3%
4FSK Digital modulation: 7K60FXD: 12.5 kHz (data) / 7K60FXE: 12.5 kHz (data+voice)
Receiver
Sensitivity: Wide: ≤ 0.25 µV / Narrow: ≤ 0.30 µV
Digital sensitivity: Wide: 0.3 µV / 117.4 dBm (Ber 5%) / Narrow: 0.7 µV / 110 dBm (Ber 1%)
Spurious emission: Wide: ≤ -57 dB / Narrow: ≤ -57 dB
Spurious rejection: Wide: ≤ 70 dB / Narrow: ≤ 70 dB
Blocking: 84 dB
Audio distortion: ≤ 5%
Audio power output: Wide: ≤ 0.45 µV / Narrow: ≤ 0.40 µV
Speaker: 2 Watts - 8 Ohm
