CRT SS 8900
CRT CRT SS 8900 export
Latest 2024 October version!
Easy to open up to 27 Mc!

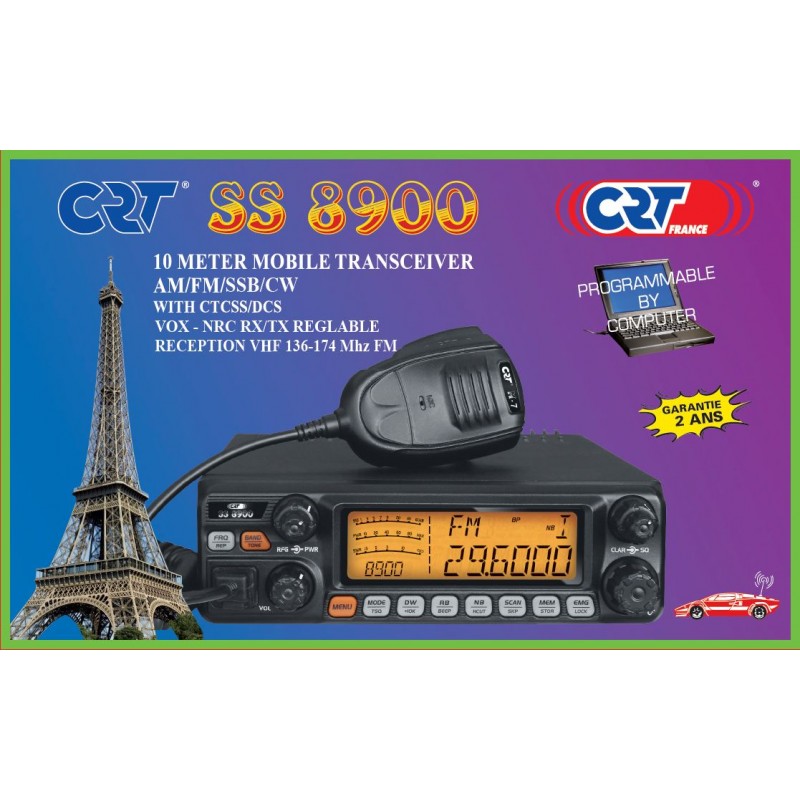

The CRT SS-8900 is the successor to the SS-7900 V Turbo and at first glance you don't see any differences but there are. It features a VOX function, a 5 kHz Step and the modern NRC filter (noise reduction). The installation depth of the CRT SS-8900 has shrunk from 280 mm to 230 mm.
The CRT SS-8900 is a mobile transceiver that allows transmitting and receiving on AM/FM and SSB band (28 - 29.7 MHz). Another innovation was that frequencies in the 2 meter band (136 - 174 MHz) could be stored for receive only via the optional programming software.
The CRT SS-8900 has a transmit power of 60W PEP in AM mode, up to 50W in FM and 60W PEP SSB, each adjustable.

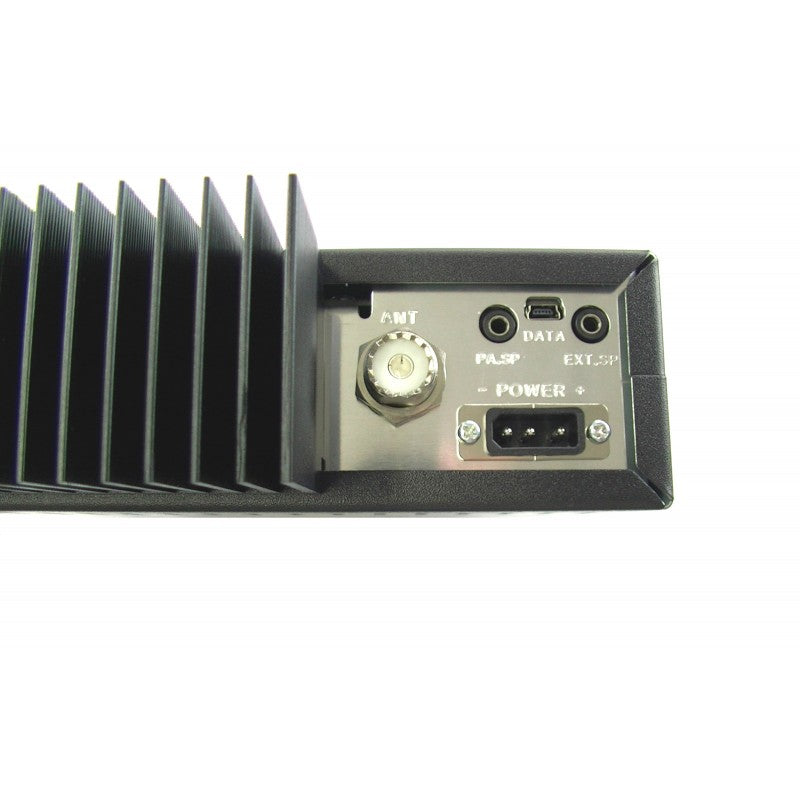

Using the optional programming software, the unit can be personalized. The "DATA" USB programming port is located on the back of the unit. Using the appropriate USB programming cable, the device is connected to the PC and can be programmed. Do not use a conventional USB cable of the same design, as this may cause permanent damage to the device.
AM / FM / LSB / USB / CW
24-29.7 MHz
Receptor VHF FM 136-174 MHz
60W with modulation AM / 50W FM / 60W SSB
LARGE LCD frequency display
Ultra compact size !
NEW 100% reception technology
Frequency or channels
Modulation
Detection S meter
Transmit signal
SWR A
Specifications CRT SS-8900:
Standard AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory)
Mode AM / FM / LSB / USB / CW
Frequency range 28 - 29.7 mHz
Receptor VHF FM 136-174 mHz (possibility of 99 memories)
Power 60W with modulation AM / 50W FM / 60W SSB (réglable AM/FM/SSB)
Input voltage 13.8V DC
Memories 6
Step of increment 100Hz / 1kHz / 5kHz / 10kHz / 100kHz / 1mHz
S-METER AGC S-METER SPEED : 2 levels available
CLARIFIER Yes : clarifies the voice in SSB (range ± 500Hz/± 5kHz))
RELAY MOD / OFFSET / SPLIT Yes : allows to enter a relay with two different frequency
SQUELCH Automatic (ASQ)- 9 automatic squelch levels
ROGER BEEP Yes : TX beep end (off / 1-5)
RF GAIN Yes : adjust sensibility on RX
MICRO GAIN Yes : (via menu) adjusts the gain of increasing or decreasing the audio power (1-36levels)
CTCSS / DCS (encoder/decoder) 38 CTCSS / 104 DCS : sub-audio code to activate repeater like selective tone (RX setup / TX setup / RX+TX setup)
Filters NB/HI CUT Yes : noise filters
NRC filter function Yes : RX/TX noise reduction -adjustable 5 levels- particularly effective in SSB
SPLIT function Yes : allows to transmit and receive on two different frequencies in half duplex
DOUBLE WATCH function Yes
VOX function Yes : this feature triggers your microphone sound (hands free) (9 sensitivity levels + VOX delay time + VOX speaker)
TOT function Yes : time out timer (off/adjustable up to 600 seconds)
CTCSS / DCS SCAN function Yes : code search by SCAN
SCAN function Yes : automatic search of busy channels
RESET function Yes: in the event of a malfunction or incorrect handling, it is possible to restore the factory settings or reset the functions
Various functions Selection FM deviation 4K (Default 2.5K)+ Emergency Channel + (+) 10kHz function / ECHO on/off (32levels) / MONITORING + OFFSET function + SWR protection + Beep function keys + Keypad lock
Bonus Clarifier frequency display - Oversized radiators to dissipate heat

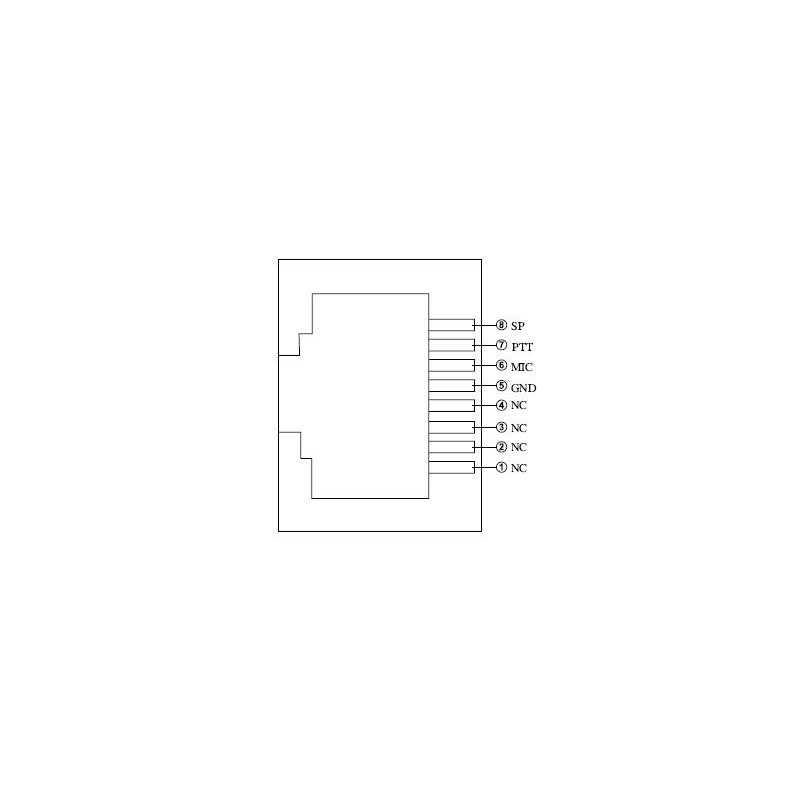

Mike electret type - UP/DOWN selection (plug in front pannel) Microphone type selection : electret or dynamic
Display BIG LCD display + DIMMER function : 5 backlight dimmer levels available
Level display BIG DISPLAYING FREQUENCY or channel + Viewing the modulation mode + Indicator signal reception and transmission + SWR level indicator
Options Programming cable + software
Programmable by software Yes
Includ Detachable power cable + fixing bracket + screws + microphone holder + manual in French&English

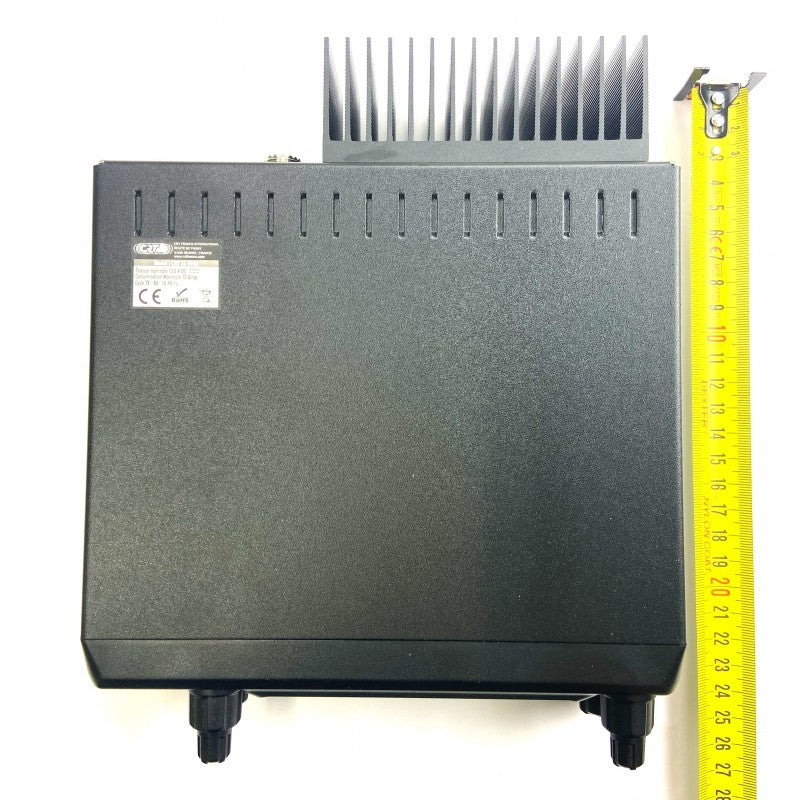

Size 200(l)x230(L)x60(h) ULTRA COMPACT SIZES !
Weight 1.5 kgs
Guaranty 2 years
Open all Bands:
Press and hold MENU + EMG while turning on the radio,
Choose the desired band BAND 1 or BAND 2 and then long press MENU to confirm.
BAND 1 = 28-29.7MHZ ---BAND 2 = 24.715-30.105 MHz
