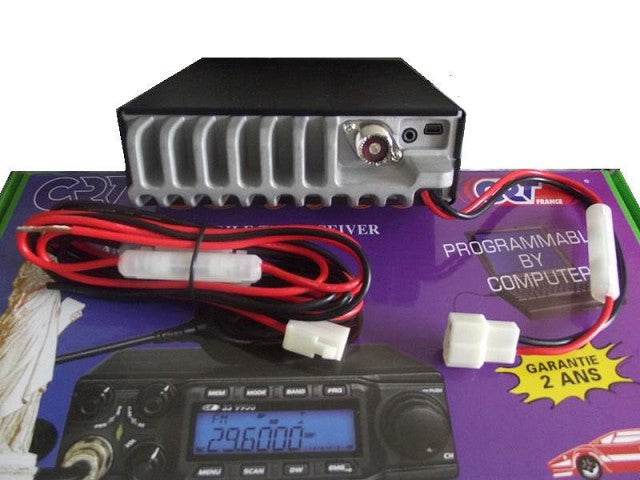

CRT SS 9900 Export version 4
CRT SS 9900 Export version 4
Coming from France, the CRT Super Star 9900 export version is a powerful cbradio for not too much money.
With as much as 50 watts on FM, 30 watts on AM and even 65 watts on SSB it will get you very far.
You no longer need software, below you can see how easy you can open this 27 Mc radio to 24.880 - to 30.105 MHZ
To switch from HF 10 meter band to CB Band 11 meter 27Mc on the CRT SS 9900 you no longer need software with version 4!
Press and hold the menu button and Band button at the same time. Turn on the CRT SS9900.
The radio shows HF Band 28- 29.7 Mhz.
Turn the channels knob until you see CB Band 24,880 - 30,105 Mhz.
Press and hold the Menu button to confirm this 27 Mc selection.
That's it!
You can also program the CRT SS 9900 version 4 with free software and a USB cable using a computer.
FEATURES, FUNCTIONS AND SPECIFICATIONS:
- New on Version 4: On version 4 you have also band K (24.885 - 25.365 MHz) and band L (25.375 - 25.605 MHz)
- Modes: AM/FM/USB/LSB.
- Power: AM 30 Watts with Modulation, FM 50 Watts, SSB 60 Watts.
- Output Power Adjustable on AM/FM/SSB.
- CTCSS and DCS encoder/decoder (included original) 38 CTCSS-104DCS.
- Frequency Shift (REP function) SPLIT Adjustable from 100Hz to 5 MHz.
- Steps 100 Hz, 1 KHz, 10 KHz, 100 KHz and 1 MHz.
- VFO in Frequency mode continued from 28,000 to 29,700 MHz (with step selected).
- FIN (Fine Tune, RX only / TX only / Both). Adjustable with clarifier, range ± 1.5 KHz.
- 6 Memories Programmable.
- Automatic Squelch (AM/FM) ASQ.
- Power / Signal Strength / SWR Indication.
- Numeric Indication for SWR Value.
- Power Supply DC Displaying.
- Dual Watch.
- Scan Mode.
- Roger Beep.
- Adjustable echo.
- Public Address.
- Multi-Color Display (7 Colors ).
- Backlight Key.
- Key Lock.
- Hi Cut (on/off).
- Noise Blanker (on/off).
- Echo (on/off).
- +10 KHz (on/off).
- Roger Beep (off, 1-5).
- Microphone Gain (1-36).
- NOG (Monitor Volume, 1-32).
- TOT (Time Out Timer, Off / Adjustable up to 600 Seconds).
- TSR (High SWR Protection, On/Off).
- TDC (High Voltage Protection, On/Off).
- SCM (Scan Mode, SQ/Time).
- Programmable by Computer (mini USB on back side).
- Reset.
- Size : 157 Large x 48 Height x 246 Depth.
- Weight : 2.1 Kg.
PLEASE NOTE:
- Software for Version-4 is only to be used with Version-4 model radio
PACKING INCLUDES:
1 Pc of SS9900.
1 Pc of Microphone.
1 Pc of Install Bracket.
1 Pc of Microphone Hanger.
1 Pc of Cable.
2 Pcs of Screws.
2 Pcs of Pads.
2 Pcs of Adjusting Screws.
1 Pc of Non-Slip Mat.
1 Pc of Fuse (10A 250V).
1 Pc of User Manual in English.
1 Pc of User Manual in French.
WIRING OF MIC CABLE:
PIN 1 = Modulation
PIN 2 = UP/DW
PIN 3 = PTT
PIN 4 = NC
PIN 5 = Shield
PIN 6 = NC
Comes close to 6-Pin Uniden/President Wiring, UP will function, DOWN will NOT function.
Download here the free software for the CRT SS 9900
