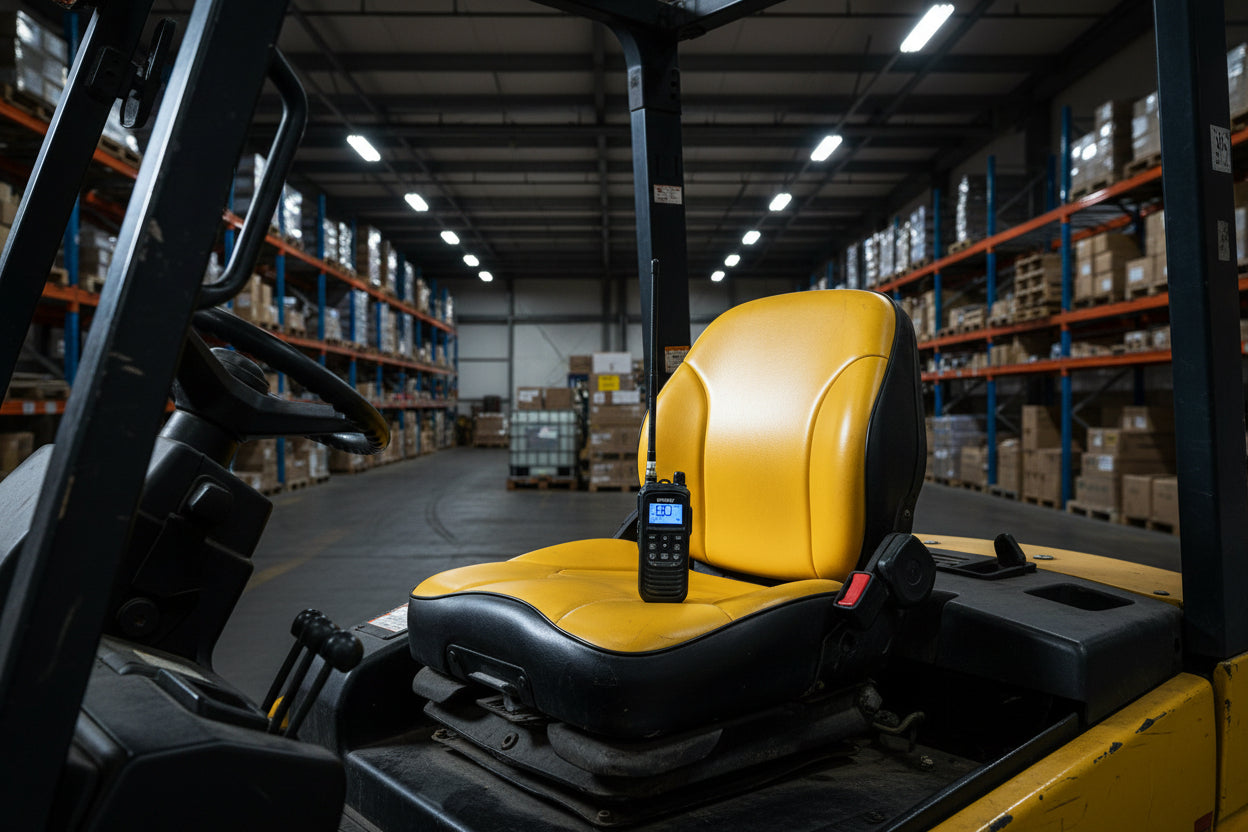

Maas KCB-H-1000

Maas KCB-H-1000

We have had this 27 mc radio in our range since 2024.

A major advantage of the Maas KCB H 1000 radio is that it can be charged via USB.

So no special adapter is needed and a car kit is also included to use it as a car in the car with a magnetic antenna.

Furthermore, the KCB H 1000 has noise suppression when speaking and automatic squelch when receiving.

The user-friendly menu structure and the large illuminated display enable easy operation. The included car adapter can quickly transform the Maas KCB H-1000 into a full-fledged mobile radio with the option to connect an external antenna. The USB-C port also makes it possible to charge the device with common USB 5V adapters or the included 230V or 12V charger.

The external connection for speaker microphones and headsets complies with the "K" standard (Kenwood double jack plug). This offers a wide range of accessories, or you can use a suitable microphone adapter to connect table microphones or handheld microphones from mobile radios to the Maas KCB H-1000.

In the box:

Maas KCB-H1000 CB Handheld radio 1x

BNC antenna 1x

Car adapter 1x

USB-C charging cable 1x

AC adapter 5V / 2A USB 1x

Car lighter adapter 12 V / 5 V USB 1x

Stickable device holder 1x

Belt clip 1x

Instructions for use 1x

Technical specifications

AM/FM

1W / 4W

Power supply: Battery pack / 5V DC / 12V DC

Antenna connection: BNC or PL when using the car adapter

External microphone connection: K-Norm - Combined double jack connection 2.5 mm / 3.5 mm

Connection for car adapter

USB-C connection for charging (5V DC)

Multinorm

DE: 80 FM / 40 AM

EC: 40 FM

EU: 40FM 4 Watt / 40 AM

PL: 40 FM/AM 4 Watts 0 kHz

UK: 40 FM CEPT 4 Watt and 40 FM UK 4 Watt
