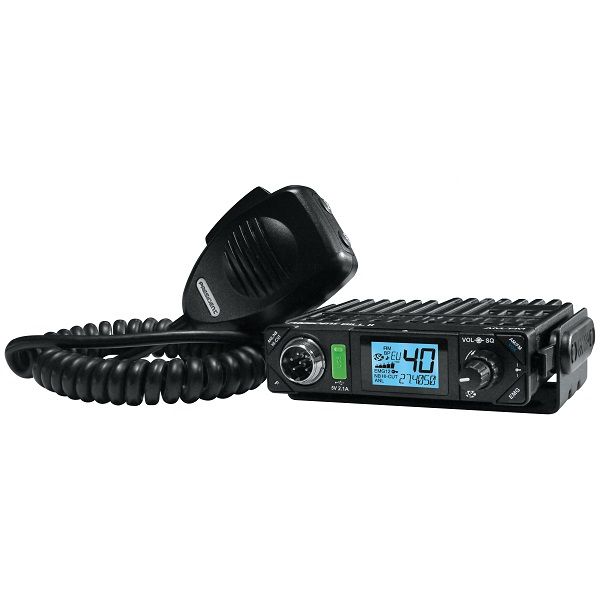

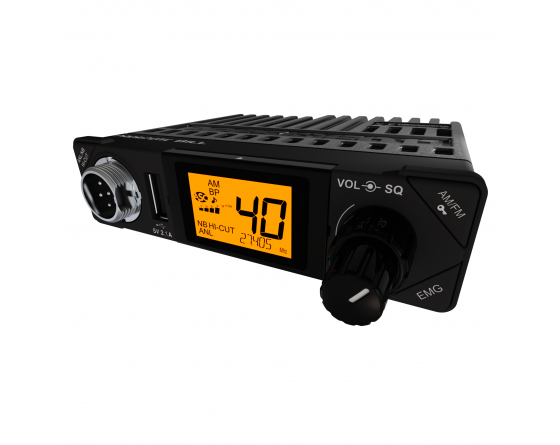

President BiLL 2

President BiLL 2

Transceiver CB Mobile

• Most complete CB Portable Transceiver

• Most available features and functions

• Multiband - Multi Standards (10)

• Frequency Range: 40 Channels (26.965 - 27.405 MHz)

• Modulation Modes: AM / FM

• Output Power: Max 4 Watt AM / 4 Watt FM

• Power Supply: 12 Volt

• Microphone: Electret Type, 6-Pi

FEATURES, FUNCTIONS AND SPECIFICATIONS:
General
• Number of channels: 40
• Modulation modes: AM / FM
• Frequency ranges: from 26.965 MHz to 27.405 MHz
• Antenna impedance: 50 Ohms
• Power supply: 12 Volt
• Size: 102 (W) x 100 (D) x 25 (H) mm
• Weight: 430 gram
• Accessories supplied:
..1 Pc Microphone UP/DOWN and its hanger,
..1 Pc Mounting bracket with fixing screws
..1 Pc Quick support

Transmission
• Frequency allowance: +/- 200 Hz
• Carrier power: 4 Watt AM / 4 Watt FM
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Audio response: 300 Hz to 3 KHz
• Emitted power in the adj. channel: inferior a 20 μW
• Microphone sensitivity: 7 mV
• Drain: 1,7 A at 13,2 Volt Modulated signal distortion: 2 %

Reception
• Max. sensitivity at 20 dB sinad: 0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM
• Frequency response: 300 Hz to 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 2 Watt
• Squelch sensitivity: mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate frequency rej. rate: 70 dB
• Drain: 180 ~ 500 mA (13,2 Volt)

PACKING INCLUDES:
1 Pc of Transceiver
1 Pc of Microphone UP/DOWN and its hanger,
1 Pc of Mounting bracket with fixing screws
1 Pc of Quick support
1 Pc of User Manual in English

AVAILABLE ACCESSORIES:
• DM-520-6P = Replacement Microphone of the Brand Komunica.
• DM-520-6P U/D
