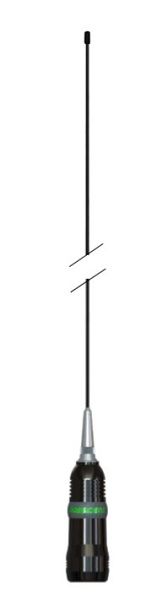

PRESIDENT Colorado 800 WB
PRESIDENT Colorado 800 Wb
Antenna CB / HF Mobile
• Whip Only
• Frequency Range: 21 - 30 MHz
• Mount: PL-Mount
• Antenna Whip: Fiberglass
• Total Length: 130 cm
• Max Power: 140 Watt (CW)
• Connector: UHF-Male
• Packing: Bag
FEATURES, FUNCTIONS AND SPECIFICATIONS:
The COLORADO 800 WB is a mobile antenna specially designed to give maximum results in the CB band, in 10m. band (28.00-29.70 MHz), 12m. band (24.89-24.99 MHz), and other HAM bands, such as, 15m. (21MHz)
Note 1: The first version of Colorado 800WB mentioned specs for 1 - 30 MHz. But in 2020 the specs changed to 21 - 30 MHz.
That means these bands were no longer supported: 17m (18 MHz), 20m (14 MHz), 30m (10MHz), 40m (7MHz), 60m (5 MHz), 80m (3,5 MHz) and 160m (1,8MHz).
SPECIFICATIONS
• Type : 5/8 wave length
• Impedance : 50 Ohm (Ω)
• Frequency : 21-30 MHz (SWR 2:1)
• Polarization : Vertical
• SWR Preadjusted : 1.2/1 Gain : + 5 dBi
• Max. power : 140 Watt P.E.P
• Band width : 8000 kHz (800 cx)
• Weight : 250 gram (0.55 lbs)
• Length : 1300 mm (51.18 inches)
• Whip : Fiber / graphite
PACKING INCLUDES:
1 Pc of Antenna
