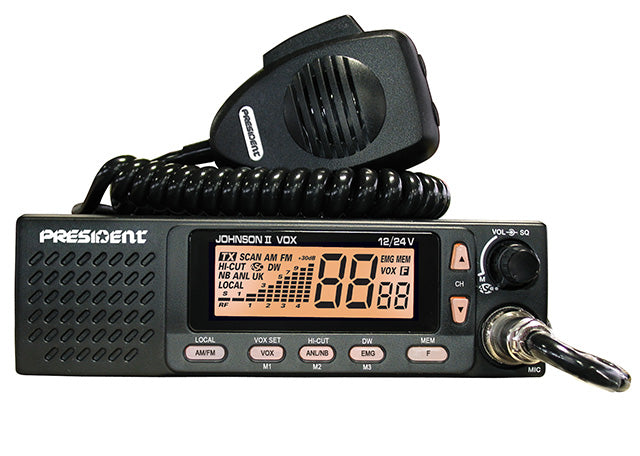

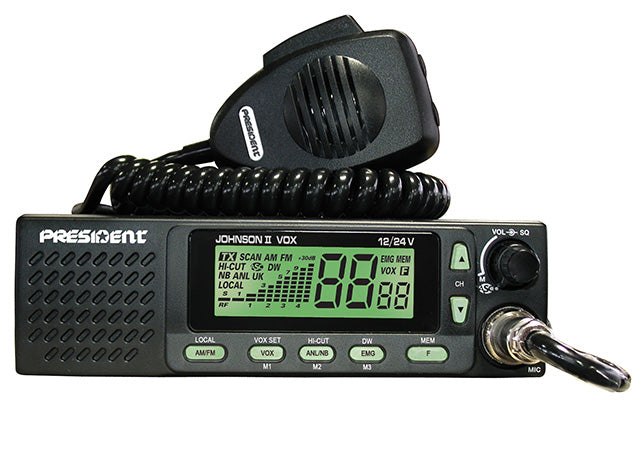

President Johnson 2 ASC 12+24 VOX
President Johnson 2 ASC 12+24 VOX
Transceiver CB Mobile, AM/FM, Multi Standard, Speaker in Front Panel. 6 European Standards
Configuration EU 40CH AM 1W / FM 4W
Configuration E 40CH AM 4W / FM 4W
Configuration D 40CH AM 1W / FM 4W 80CH
Configuration EC 40CH FM 4W
Configuration U 40CH FM 4W CEPT and UK frequencies
Configuration PL 40CH AM 4W / FM 4W, -5KHz Polish frequencies Packing includes: Transceiver, microphone, mounting bracket with mounting screws, power cord T3, user manual.
FEATURES, FUNCTIONS AND SPECIFICATIONS:
• 40 channels AM / FM
• 12 / 24 V
• Up/down channel selector
• Volume adjustment and ON/OFF
• Manual squelch and ASC
• Multi-functions LCD display
• S-meter
• ANL filter, NB and HI-CUT
• Local DX key
• Channels and memories scan
• 3 Memories
• F function key
• Beep Function
• Roger beep
• VOX built in
• Mode switch AM / FM
• Dual watch
• Preset 9/19
• Front microphone plug
• External loudspeaker jack
• Front loudspeaker
General
• Number of channels: 40
• Modulation modes: AM / FM
• Frequency ranges: from 26.965 MHz to 27.405 MHz
• Antenna impedance: 50 ohms
• Power supply: 12 V / 24 V
• Size: 170 (W) x 150 (D) x 52 (H) mm
• DIN Size
• Weight: 1 kg
Transmission
• Frequency allowance: +/- 300 Hz
• Carrier power: 4 W AM / 4 W FM
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Audio response : 300 Hz to 3 KHz in AM/FM
• Emitted power in the adj. channel: inferior to 20 μW
• Microphone sensitivity: 3,0 mV
• Drain: 2 A (with modulation)
• Modulated signal distortion: 1,8 %
Reception
• Maxi. sensitivity at 20 dB sinad: 0.5 μV - 113 dBm (AM/FM)
• Frequency response: 300 Hz to 3 kHz in AM/FM
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 3 W
• Squelch sensitivity: minimum 0.2 μV - 120 dBm / maximum 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate frequency rej. rate: 70 dB
• Drain: 400 mA nominal / 1000 mA maximum
PACKING INCLUDES:
1 Pc of Transceiver
1 Pc of Power cord with fuse
1 Pc of Microphone UP/DOWN and its hanger
1 Pc of Mounting bracket with fixing screws
1 Pc of User Manual in English, French, Spanish and Polish
