RM KL 503

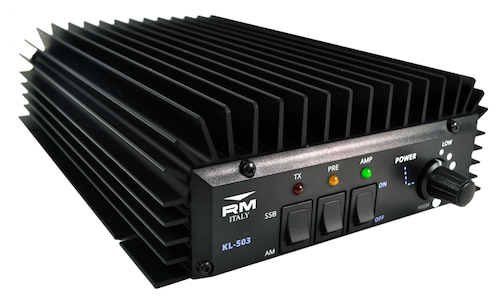

RM KL 503 amplifier
Amplifier Mobile, 20 - 30 MHz, Including Pre-Amplfier
• Supply Voltage: 12 - 14 VDC
• Modes: AM/FM/SSB/CW
• Input: 1 - 6 Watts AM/FM; 2 - 12 Watts SSB/CW
• Output: 250 Watts Max AM/FM; 450 Watts Max SSB/CW.
FEATURES, FUNCTIONS AND SPECIFICATIONS:
• Electronic switch
• Inversion polarity protection
• Frequency: 20 - 30 MHz (Europe)
• Supply: 12-14 VDC
• Input energy/power: 12-30 Ampere
• Input power: 1-6 Watt
• Input power: SSB 2 - 12 Watt
• Output power: 250 Watt Max
• Output power: SSB 450 Watt PEP Max
• Output Selector with 6 Positions/Steps
• Mode: AM-FM-SSB-CW
• Fuse: 3 x 10 Ampere
• Output power level: 6
• Size: 170x295x62 mm
• Weight: 1.5 Kg.
• Antenna preamplifier: 26 dB
PACKING INCLUDES:
1 Pc of Amplifier
1 Pc user Manual English, italian

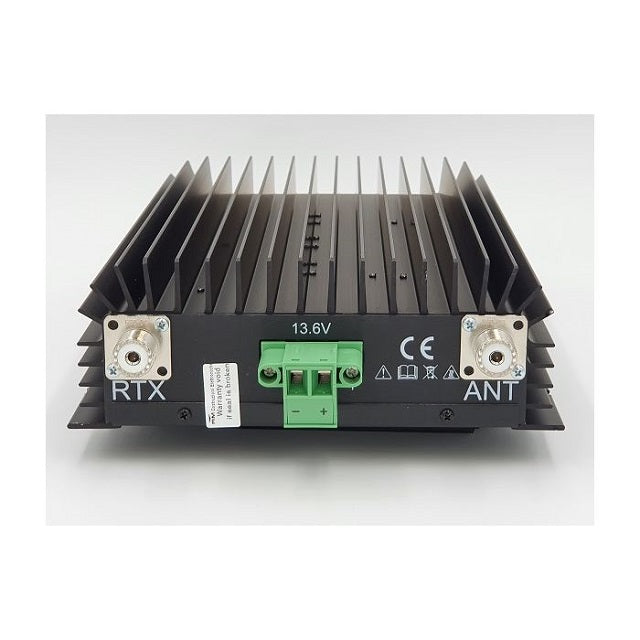

NOTE: This device has a terminal to connect a power cable.
So not a fixed power cable and no power cable included in the giftbox.
To prevent damage to your installation, make sure to use power leads from good quality, sufficient mm2 and not too long
