RM KL805
RM KL805
Met RM KL 805 versterker heb je maar liefst 600 watt op AM FM
1000 watt op SSB.
24 - 30 Mhz bereik
En insturing Input: 1 - 15 Watts AM/FM; 2 - 30 Watts SSB/CW.
PLEASE NOTE! THIS WORKS ON 24 VOLTS AND IS THEREFORE MORE INTENDED FOR TRUCKERS
FEATURES, FUNCTIONS AND SPECIFICATIONS:

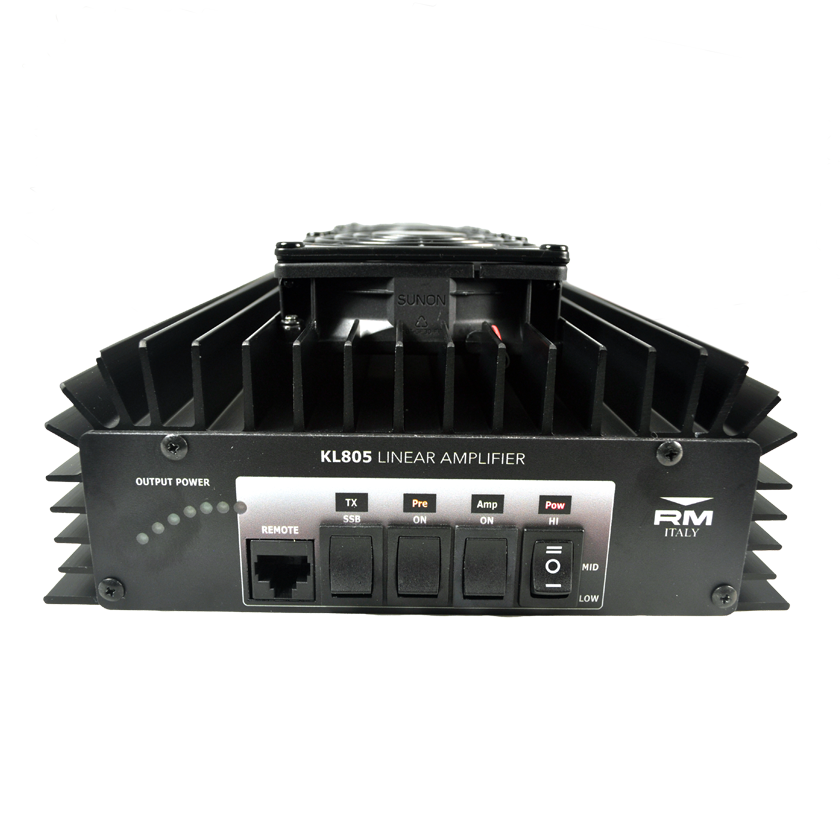

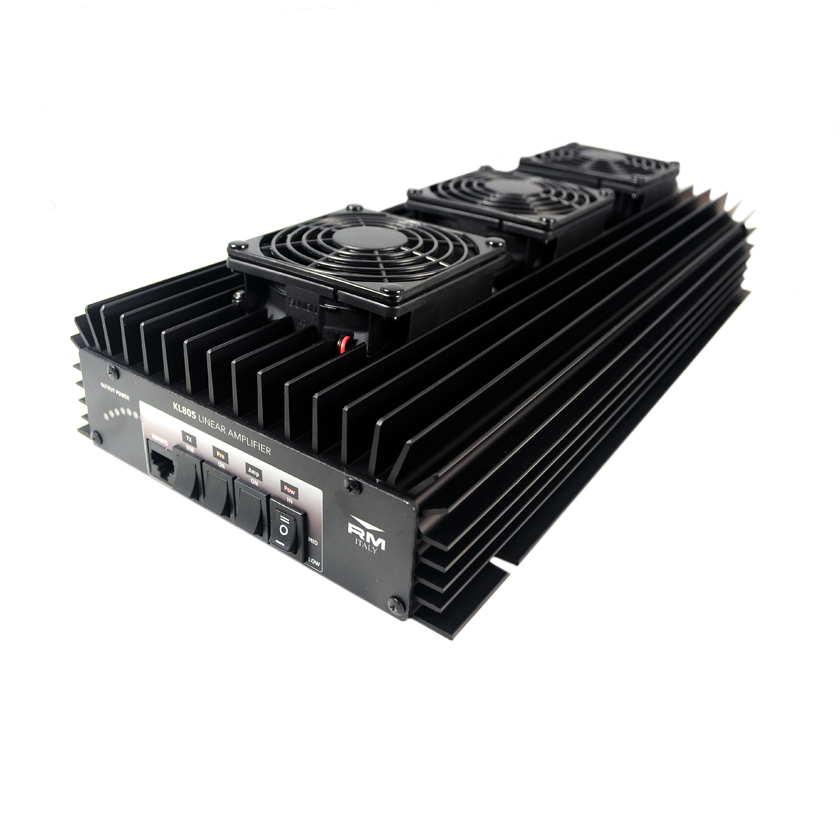

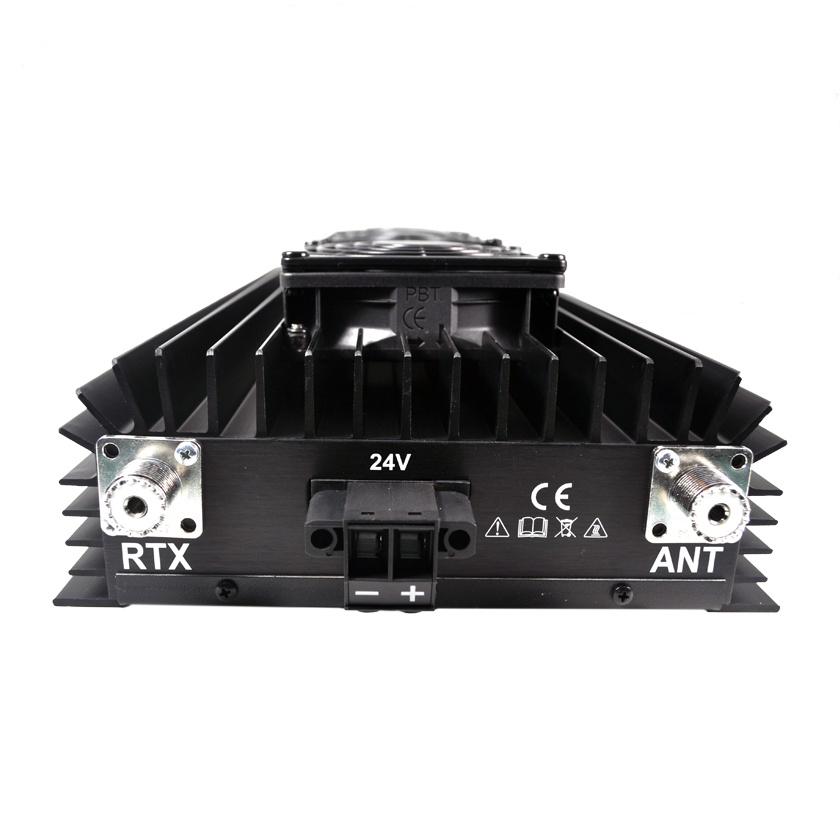

The KL 805 is a wideband compact amplifier for the HF band; covering from 24 to 30 MHz.
• Electronic switch
• Inversion polarity protection
• Plug for Full Remote command
• Output low.pass filter
• Over temperature protection
• SWR protection
• Watt Meter
• Forced multispeed ventilation
• Frequency: 24 - 30 MHz
• Supply: 22-30 Vcc
• Input Energy/Power: 10-30 A
• Input Power: AM/FM 1-15 W
• Input Power: SSB 2-30 W
• Output Power: AM/FM 600 W Max
• Output Power: SSB/CW 1000 W PEP Max
• Mode: AM-FM-SSB-CW
• Fuse: 3x12 A
• Output Power: level 3
• Size: 191x450x80 mm
• Weight: 3300 gr
PACKING INCLUDES:
1 Pc of Amplifier
1 Pc of User Manual in English, Italia
