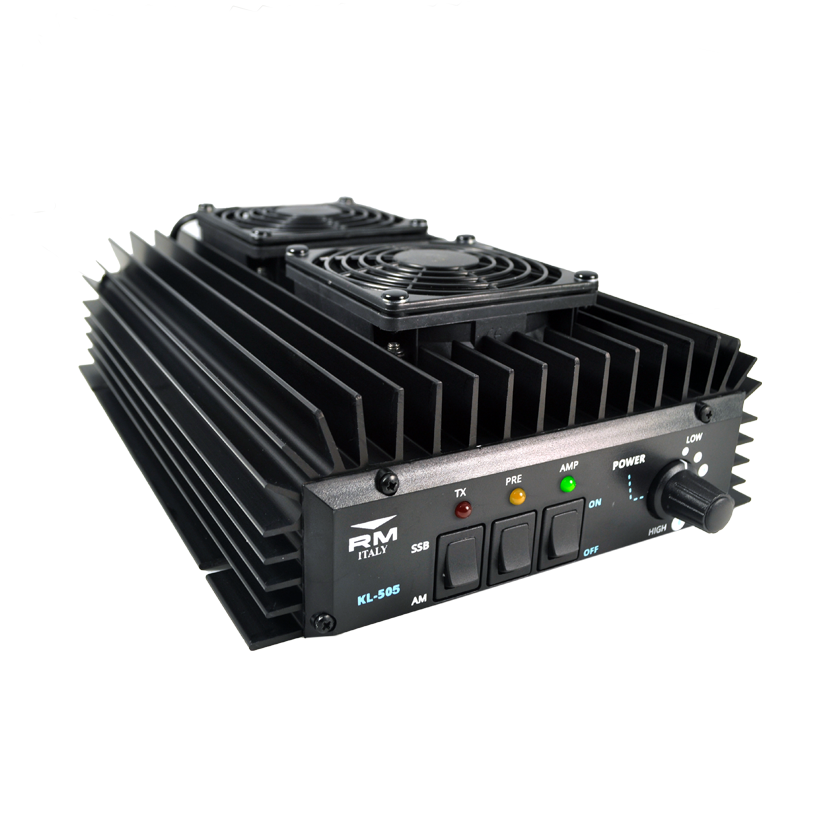

RM kl 505 V
RM kl 505 V
230 watt linear
Amplifier Mobile, 12-14 VDC, HF( 1.8 - 30MHz), AM/FM/SSB/CW, Including Pre-Amplifier, 2 Cooling Fans.
• Input Power: 1 - 10 Watts (All modes)
• Output power: 230 Watts Max
FEATURES, FUNCTIONS AND SPECIFICATIONS:
A high power broadband amplifier with variable output power and switchable pre-amplifier (not variable). The output can be adjusted in 6 stages, from approximately 50W minimum to 230W maximum (AM/FM). Comes with 2 Cooling Fans
• Frequency: HF (1.8 - 30 MHz with LPF)
• Supply: 12-14 VDC
• Input energy/power: 35 A
• Input power: 1-10 W (All Modes)
• Output power: 230 W AM/FM/SSB/CW
• Max. bypass power (Amplifier off): 50W
• Input VSWR: 1.1-1.5:1
• Output VSWR Max.: 2.5:1
• Modes: AM-FM-SSB-CW
• Fuse: 3 x 12 A
• Output power: 6 levels
• Antenna preamplifier - 26 dB
• 2 Cooling Fans
• Size: 109x225x35 mm
• Weight: 2,0 kg.
• Electronic switch
• Inversion polarity protection
PACKING INCLUDES:
1 Pc of Amplifier
1 Pc of User Manual in English, Italian, French, German and Spannish.
