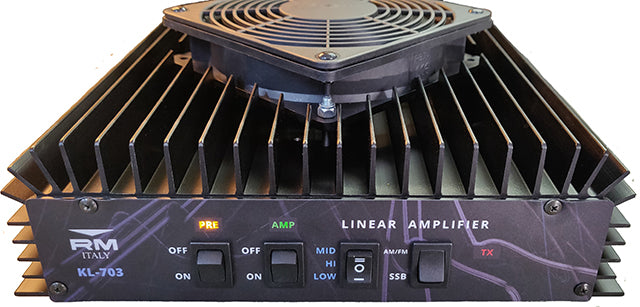

RM KL 703
RM KL 703
With a maximum power of 500 watts, this is one of the heaviest amplifiers that you can also use mobile.
The RM KL703 you can send in up to 35 watts!
Works on all modes AM FM SSB and CW and has a frequency range of 25 - 30 MHZ
So you can both on the amateur bands as well as on the regular 27Mc channels work with it.
With a maximum of 50 amperes that he demands you need a good power supply for this 27 Mc amplifier.
And if you want to use it in your car make sure you have a good antenna that can handle 500 watts continuously.
Think of a Wilson 1000 for example.

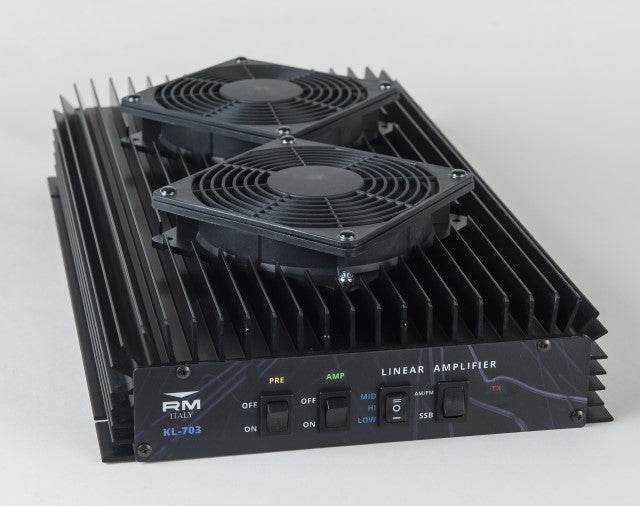

To keep the amplifier cool, the RM KL 703 is equipped with 2 fans.
Specifications
- Operation Frequency: 25 - 30 MHz (10m Amateur HF Band)
- Modulation Types: SSB,CW,AM, FM, data etc (All narrowband modes).

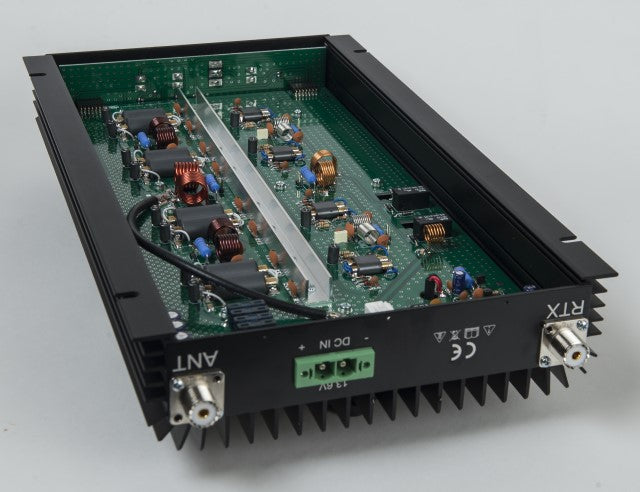

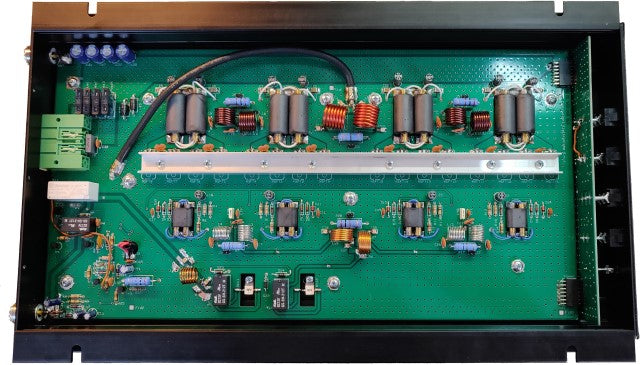

- Transistor: 16x RM 3 MOSFET
- Max I/P Current: 50A
- Power Supply: 13.8VDC+/- 1V 60A
- Input Fuse (Internal): 4x15A (Auto Fuse)
- Input RF Power: 1-35 Watt max (All modes)
- Output RF Power: 500 Watt max
- Maximum bypass power (Amplifier off): 50 Watts max
- Input VSWR: 1.1-1.5:1
- Output VSWR Max: 2.5:1
- Harmonic Output: >-50dBc 25-30 MHz
