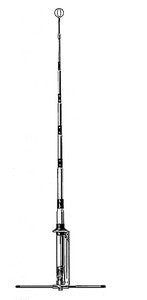

Sirio GPE- 27 5-8 Static
Sirio GPE- 27 5-8 Static
We are unable to ship items over 1.60 meter for a reasonable price.
Features:
CB Base station antenna, Omnidirectional
Factory tuned at mid-band
Low radiation angle for excellent DX
Coil protected by transparent cover
Whip equipped whit waterproof jointing sleeve
Made of aluminium alloy 6063 T-832
Protection from static discharges DC-Ground
Part Numbers:
P/N 2100301.00 GPE 27 5/8
Electrical Data
Type:
GPE 27 5/8: 5/8 ground plane
Frequency range: 26-28 MHz
Impedance: 50?
Radiation (H-plane): 360° omnidirectional
Polarization: linear vertical
Gain:
GPE 27 5/8: 1.2 dBd, 3.35 dBi
Bandwidth @ SWR ? 2: ? 1400 KHz (120 channel)
SWR @ res. freq.: ? 1.2
Max. power: 250 Watts (CW) continuous
750 Watts (CW) short time
Feed system / position: Transformer DC-ground / base
Connector: UHF-female
Mechanical Data
Materials: Aluminium, Steel, Copper, Nylon
Wind resistance: 130 Km/h
Wind load:GPE 27 5/8: 188 N at 150 Km/h
GPS 27 1/2: 156 N at 150 Km/h
Wind surface: GPE 27 5/8: 0.13 m²
GPS 27 1/2: 0.11 m²
Height (approx.): GPE 27 5/8 - GPS 27 1/2: 595 cm
Weight (approx.): 2500 gr
Radial length (approx.): GPE 27 5/8 1320 mm
Mounting mast: Ø 35-42 mm
