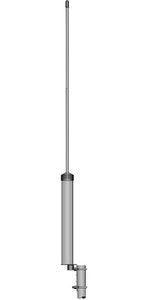

SIRIO CX 425 UHF BASE
SIRIO CX 425 UHF BASE
Features:
• Base station antenna, Mono-band
• Low-gain, Omnidirectional
• Factory tunable according to specific customer's frequency
• Protection from static discharges DC-Ground
• Made of aluminium alloy 6063 T-832 P/N 2102601.00 CX 425 Electrical Data
• Type: 3/4λ coaxial J-pole
• Frequency range S.W.R. ≤ 1.5:1: CX 425: 425-440 MHz • Impedance: 50Ω unbalanced
• Radiation (H-plane): 360° omnidirectional • Radiation (E-plane): beamwidth at -3 dB = 60°
• Polarization: vertical
• Gain: 2dBd - 4.15 dBi
• Bandwidth at S.W.R. 2:1: CX 425: 30.7 MHz • S.W.R. at res. freq.: ≤ 1.2:1 • Max. power: 250 Watts
• Feed system / position: gamma match / base
• Connector: N-female Mechanical Data
• Materials: Aluminium, Brass, Steel, Nylon
• Wind load / resistance: 25 N at 150 Km/h / 180 Km/h
• Wind surface: 0.02 m²
• Height (approx.): CX 425: 603 mm
• Weight (approx.): 450 gr
• Mounting mast: Ø 35-42 mm
