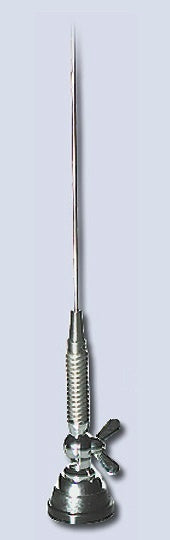

Sirio MGA 108-550/S
Features:
- Up-grade: frequency range extended at 55-550 MHz
- Mobile antenna, Mono-band
- Unity-gain, Omnidirectional
- Tunable by whip cutting
- Supplied with a strong stainless steel spring
- 17/7 PH tapered stainless steel whip
- 180┬░ inclination and adjustable whip, detachable for car-washes access
Part Numbers:
P/N 2205905.32 MGA 55-550 "SL" mount
P/N 2205905.28 MGA 55-550 "S" mount
P/N 2213805.32 MGA 108-550 "SL" mount
P/N 2213805.28 MGA 108-550 "S" mount
Electrical Data
- Type: 1/4 ╬╗
- Fequency Range:
MGA 55-550: tunable 55...550 MHz
MGA 108-550: tunable 108...550 MHz
- Impedance: 50╬®
- Radiation (H-plane): 360┬░ omnidirectional
- Polarization: linear vertical
- Gain: 0 dB ref. to a ╬╗ /4 whip
- Bandwidth @ SWR Ôëñ 2: see diagram
- SWR @ res. freq.: see diagram
- Max. Power (CW) @ 30┬░C: 100 Watts
- Standard mount: "SL"
- Cable Length / Type: 5 m / RG 58
- Alternative mount: "S" (55...300 MHz only)
Mechanical Data
- Materials: Stainless Steel 17/7 PH, Nylon, Chromed Brass
- Height (approx.):
MGA 55-550: 1400 mm
MGA 108-550: 705 mm
- Weight (approx.): 420 gr
- Mounting Hole: ├ÿ 19 mm
