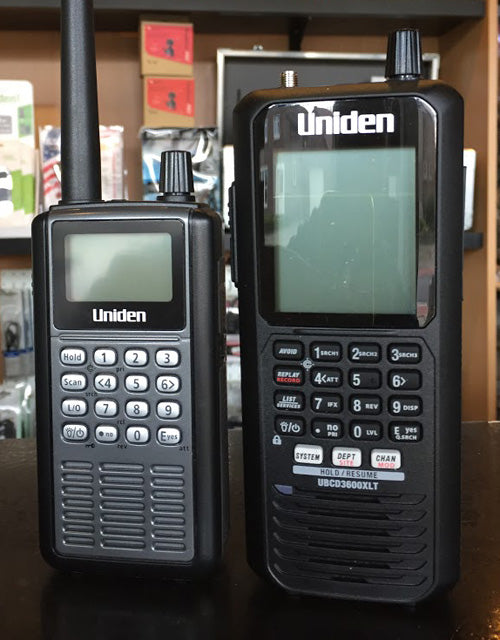

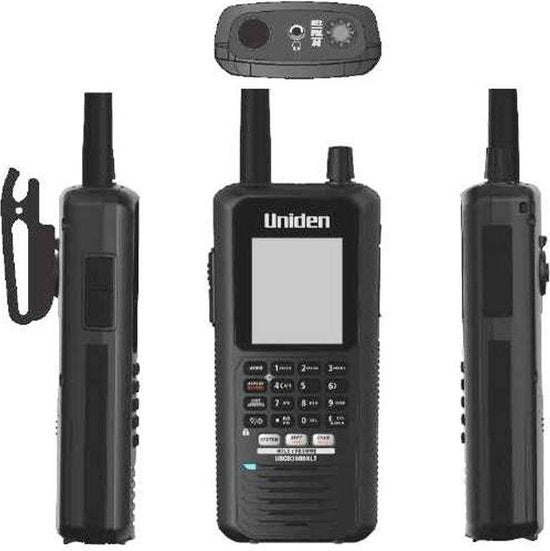

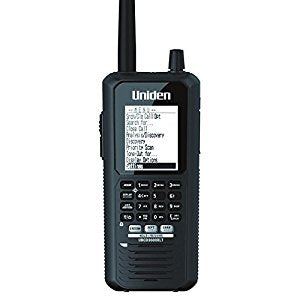

Uniden Bearcat UBCD 3600 XLT NXDN
Uniden Bearcat UBC D 3600 XLT NXDN
The Uniden UBC D 3600 is capable of both DMR and NXDN,
As the first digital portable radio scanner, this scanner is suitable for the demanding radio listener.
Where with the Uniden SDS 100 NXDN is an option, with the 3600 XLT it is standard.
With hitherto unprecedented capabilities in a handheld radio scanner, this is a scanner prepared for the already increasing digital radio capabilities.
The 3600 XLT is a fullband scanner from 25 - 1300 MHZ
And with 85 channels per second very fast
Update your own firmware!
This is the first scanner where you can update the firmware yourself with the included USB cable and downloadable Sentinel software.
So new digital encodings or other future features can be downloaded.
Message recording
On the included sd card (on the box it says 4gb, but in our test sample was 8gb) you can record up to 4 minutes of audio and play it back3600
Close Call
This feature has been on Uniden radio scanners for a long time and is one of the nicest and most 0 features on a modern radio scanner.
The UBCD3600XLT immediately lets you hear what frequency is active in your area, and the display shows the frequency and any tone code. Now this function also works while scanning, but your scan channels are not interrupted by the close call.
Pager function
Don't know yet if it works with us. But in the USA it is so you can get the text pager of the fire department in, for example.
Trunktracker V scanner
Again, the UBCD 3600 XLT is further along in this. APCO 25 phase 1 and phase 2, DMR, Motorola, EDACS, EDACS ProVoice and LTR trunked systems, as well as conventional analog and P25 digital transmitters.
Create lists of your favorite channels
So you can create many lists of the channels you like to listen to and combine them yourself.
Technical specifications of the Uniden UBCD 3600 XLT:
Frequency range 25-1300 MHz
Frequency steps 5, 6.25, 7.5, 8.33, 10, 12.5,15, 20, 25, 50 or 100 kHz
Scan rate 85 channels/second
Search speed:
80 steps/second (12.5 kHz steps)
250 steps/second (5 kHz steps)
Close Call short range "Mini Transmitter Finder"
Analog and Digital mode
Backlit keypad and LCD display
SCAN and search functions incl. Custom Search
FM radio reception
Micro SD card slot for favorites lists and player reports
Connector for optional GPS receiver
Range Control (requires optional GPS unit and favorites list)
Trunk Tracker V operation
Scans APCO25 Phase 1 and Phase 2, DMR, Motorola, EDACS, EDACS Pro Voice, LTR, P25 analog and digital
Multi-Site Trunking
Control Channel scanning only (Motorola)
Recording the last received 240 seconds. (To replay can)
Recorder function
Alarm function when a signal is received. (Different alarm options programmable)
Trunking Discovery
Scanning by theme (for example, aviation, amateur radio, etc.)
In Turbo mode, up to 250 steps per second while searching
Channel Number Tagging
Programmable via optional software
Analog and digital AGC
Priority Channel Scan
Possibility of shifting the IF against special reception
Volume can be programmed separately for each memory unit
Steps 6.25 and 8.33 kHz frequency grid
WFM for radio reception
Data Naming for IDs
100 Hotkeys for favorites, among other things
Up to 250 frequencies can be hidden
10 programmable scanning frequency ranges
Built-in charging function
Firmware Update function
S-meter on LCD display
Battery status indicator
Tier 2 Tier 3 support
Scan Delay function
ID scanning
Keypad lock
CTCSS / DCS SCAN
Time Out Timer
Quick memory function
Pre-programmed scan frequencies (focus on USA ...)

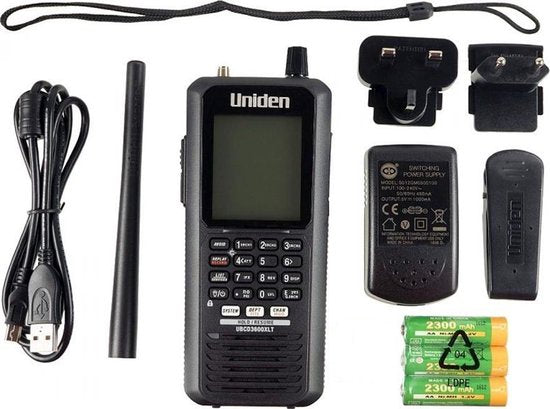

Package Contents:
1 x Uniden UBCD 3600XLT scanner
1 x USB cable
3 x AA NiMH rechargeable batteries
1 x MicroSD card (installed)
1 x Swivel belt clip
1 x SMA-BNC antenna adapter
1 x Rubber Antenna
1 x AC Adaptor
1 x Manual
