Wouxun KG-Q336 Export
Wouxun - KG-Q336 Export

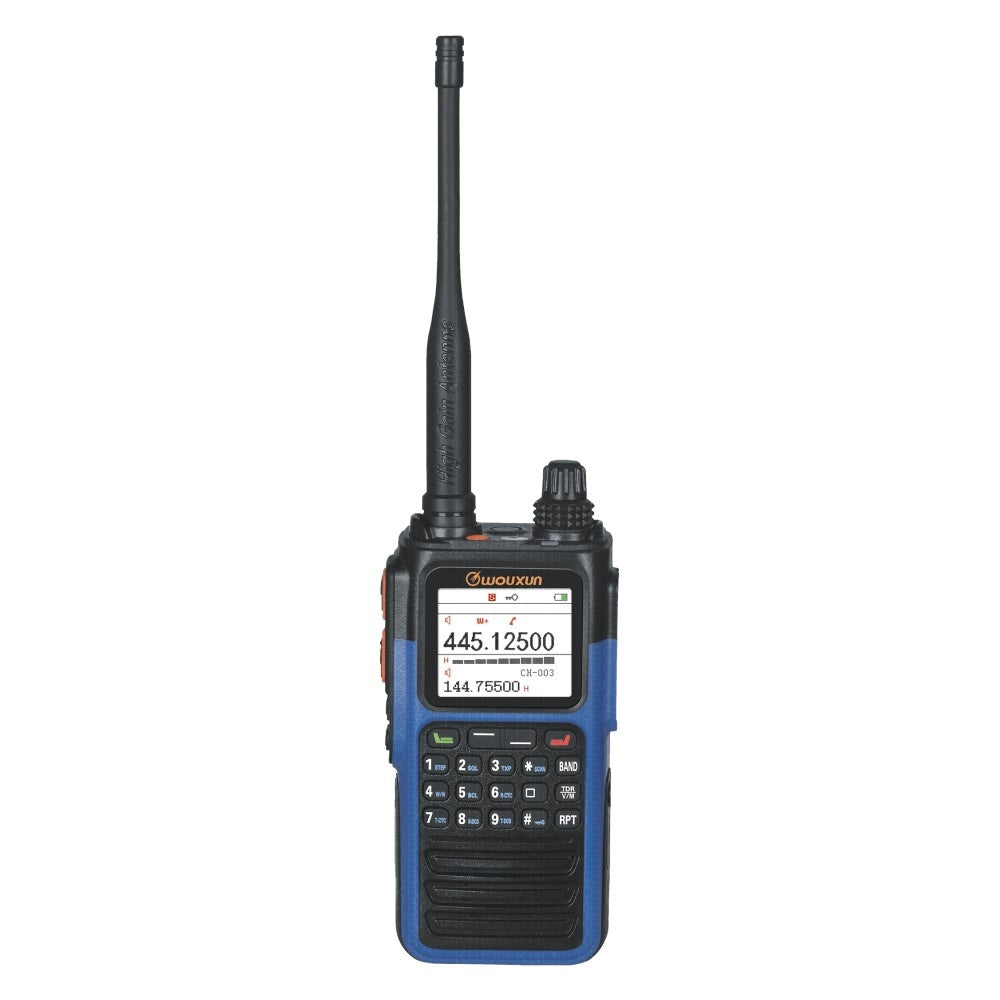

The Wouxun KG-Q336 tri-band handheld radio is together with the Wouxun KG-Q332 one of 2024 Wouxun' new top models.
The KG-Q336 can be used for TX on 66-88, 136-174 and 400-480 MHz and wide band RX on 76-108, 108-136 (Airband AM), 136-174, 222-225, 320-400, 400-480 MHz and 714-999 MHz.
Both models have features like a cross-band repeater, dual-reception, double PTT, scan function, scrambler, compander, programmable side keys and many more interesting features that are listed below.
With the free downloadable PC program software you can easily program your frequencies and change all setting to your own preferences*.
This all comes in the new and modern radio housing from Wouxun, which includes a heavy duty 3000 mAh battery pack, USB-C charging function (charging cable not included), table charging function, clear multi-color display, flashlight and IP65 waterproof index.
Our version is the approved European version with CE (RED).
*Program cable not included, we recommend product code 23
Display: Yes, large color display
Emergency (SOS) function: Yes
Flashlight: Yes
Priority channel scan: Yes
High/low power selection: Yes
Voice guide: English
Battery capacity: Li-ion 3000 mAh (7.4V)
Waterproof index: IP65
Accessory connector: 2-pin Kenwood (K)
Busy channel lockout: Yes
CTCSS / DCS: Yes, RX and TX, programmable by computer
Scan group: Yes
Call Code: Yes
Scrambler: Yes
Compander: Yes
AM Mode SW: Yes
Battery Save Mode: Yes
Transmit Timeout Timer: Yes
Transmit Timeout Alert: Yes
Multi Keys Options: Yes
Repeater PTT: Yes
Time Zone: Yes
Two menu system: Yes
FM Radio: Yes
PF options (programmable keys): Yes, PF1, PF2, PF3 modes
PTT ID transmit modes: Yes
Transmitter
Power output (Watts): VHF: 5/2/1 Watts / UHF: 4/2/1 Watts
Work mode: F2D / F3E
Antenna impedance: 50 Ohm
Frequency stability: ±2.5 PPM
Type of modulation: Wide: 16K F3E / Narrow: 11K F3E
Max. frequency deviation: Wide: ±5 kHz / Narrow: ≤±2.5 kHz
Audio response: 300-3000 Hz +1 to -3 dB
Adjacent channel selectivity: Wide: ≤70 dB / Narrow: ≤60 dB
Spurious: Wide: ≤60 dB / Narrow: ≤60 dB
Modulation distortion: ≤5%
Receiver
Audio distortion: ≤5%
Audio power output: ≤500 mW
Audio response: 300-3000 Hz +1 to -3 dB
Adjacent channel selection: Wide: ≤70 dB / Narrow: ≤60 dB
Inter modulation: Wide: ≤65 dB / Narrow: ≤60 dB
Signal to noise ratio: Wide: ≥45 dB / Narrow: ≥40 dB
Mechanical data
Length: 60 mm
Height: 133 mm (without antenna)
Width: 36 mm
Weight: 326 gram (including ANO-057 antenna)
Antenna connector: SMA male
USB-C charging: Yes
Inside the box
Transceiver: Yes
Battery: Yes, BLO-032 Li-ion Battery Pack (7.4V 3000 mAh)
Charger: Desk charger with AC adapter (CHA-035A - CHA-035B)
Installation manual: English
Antenna 66-88 MHz: Yes, ANO-057, 185 mm
Antenna 136-174 / 400-520 MHz: Yes, ANO-056, 145 mm
Belt clip: Yes
Hand strap: Yes
Spurious radiation: Wide: ≥70 dB / Narrow: ≥70 dB
Sensitivity: UHF / VHF : -119.0 dBm SINAD 13 dB
Sensitivity 108 - 136 MHz (AM): 106.0 dbm SINAD 13 dB
Sensitivity 136 - 174 MHz: 119.0 dbm SINAD 13 dB
Sensitivity 216 - 260 MHz: 116.0 dbm SINAD 13 dB
Sensitivity 400 - 480 MHz: 119.0 dbm SINAD 13 dB
Sensitivity 714 - 999 MHz: 96.0 dbm SINAD 12 dB
