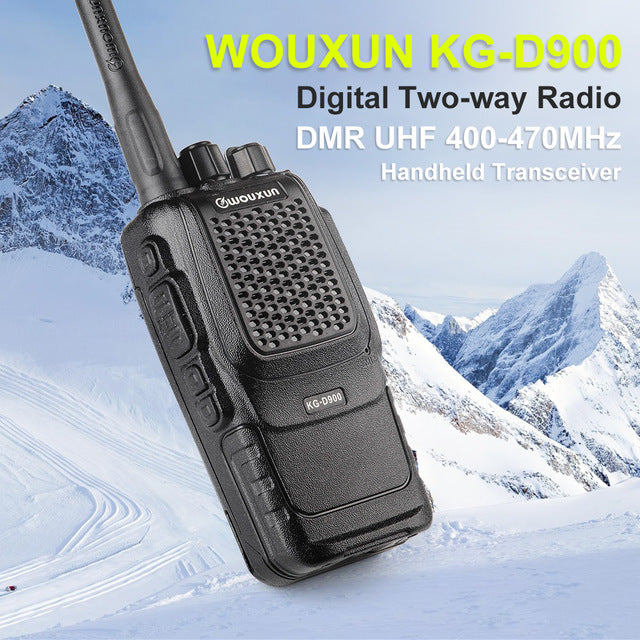

WOUXUN KG-D900 DMR UHF
WOUXUN KG-D900 DMR UHF
Description of Features
High/Low Output Power Switchable
Power Save
VOX Function
Busy Channel Lockout Setting
Microphone Modulation Setting
Low Voltage Voice Prompt
SOS Alarm
ANI ID
Scan Group Setting
Scan Channel Selection
Digital Encryption
Lamp Function

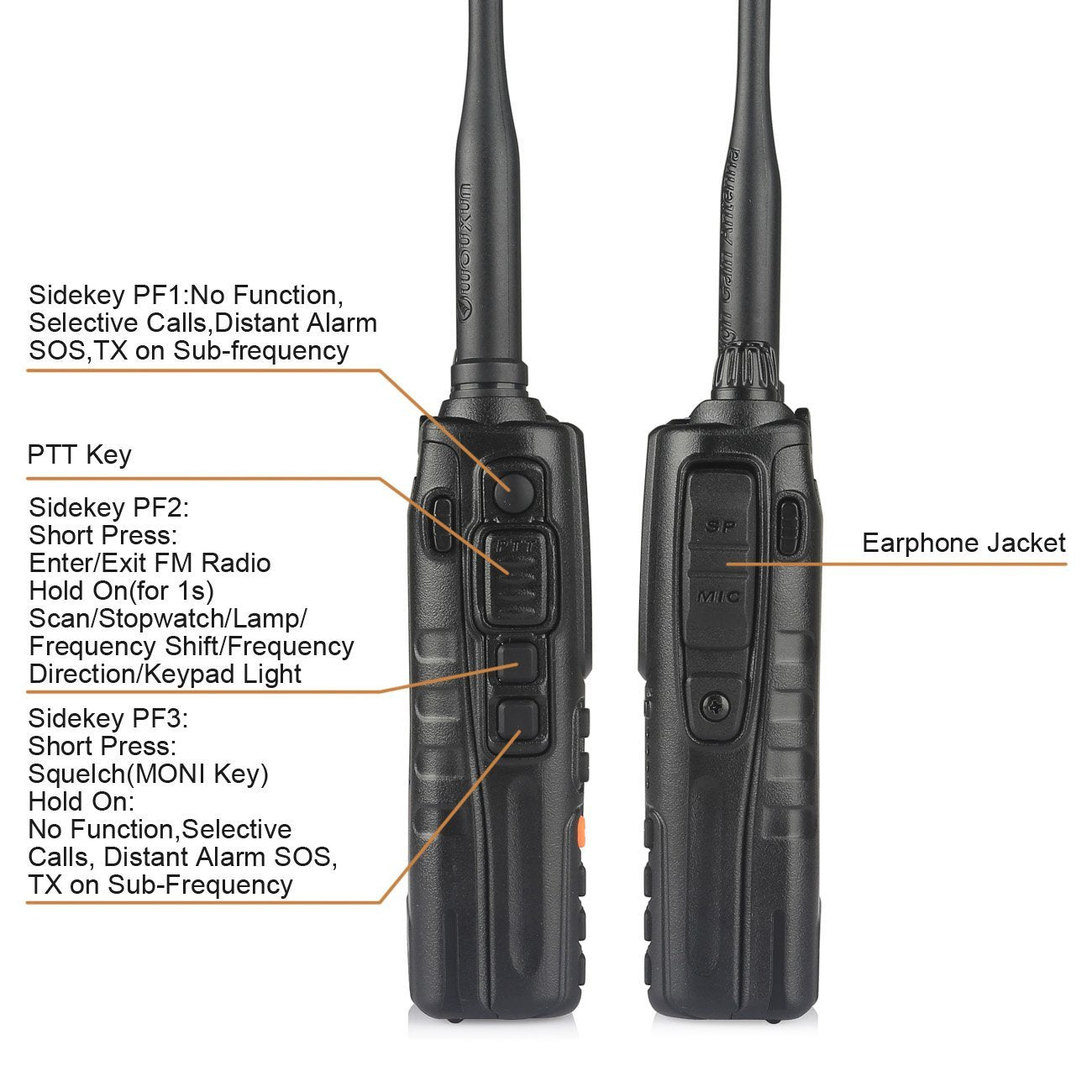

Multi-Function Programmalbe for Sidekeys
One Key Switch Digital / Analogue Mode
One Key Switch High / Low Power
PTT ID
Product Specifications:
Integral part
Mode: DMR
Frequency Range: 400-470MHz
Channel Spacing: Digital : 12.5KHz , Analogue:12.5/25KHz
Channel number: 16
Standard Package: 2000mAh , Lithium-ion
Working temperature: -20℃～+50℃
Storage temperature: -40℃～+80℃
Working Voltage: 7.2VDC
Working Currency: < 1300mA
Weight: 248 g
Size: 61 x 32 x 120 (mm)
Receiver
Frequency Stability: ±2.5ppm
Inter-modulation: 65dB
Co-channel Rejection: -8dB@12.5KHz
Spurious Inhibition: -57dBm@<1GHz , -47dBm@>1GHz
Block: 84dB
Adjacent Channel Selectivity: 60dB@12.5KHz
Spurious Response: ≥70dB
Regulated Audio Power: 1W
Digital Sensitivity: 0.3µV / -117.4dBm(BER 5%) , 0.7µV / -110dBm(BER 1%)
Transmitter (Wide/Narrow)
Transmission Power: ≤5W
FM Noise: 40dB@12.5KHz
Transmission Spurious: -36dBm@<1GHz , -30dBm@>1GHz
Adjacent Power: -60dB@12.5KHz
Bandwidth Limit: 2.5KHz@12.5KHz
Spare Time Slot Power: -57dBm
Modulation Characteristics: +1dB~-3dB
Digital Transmission Bit Error Rate: ≤3%
Output Power: ≤5W
4FSK Digital Modulation Method: 12.5KHz(data only):7K60FXD
12.5KHz(data+voice):7K60FXE
