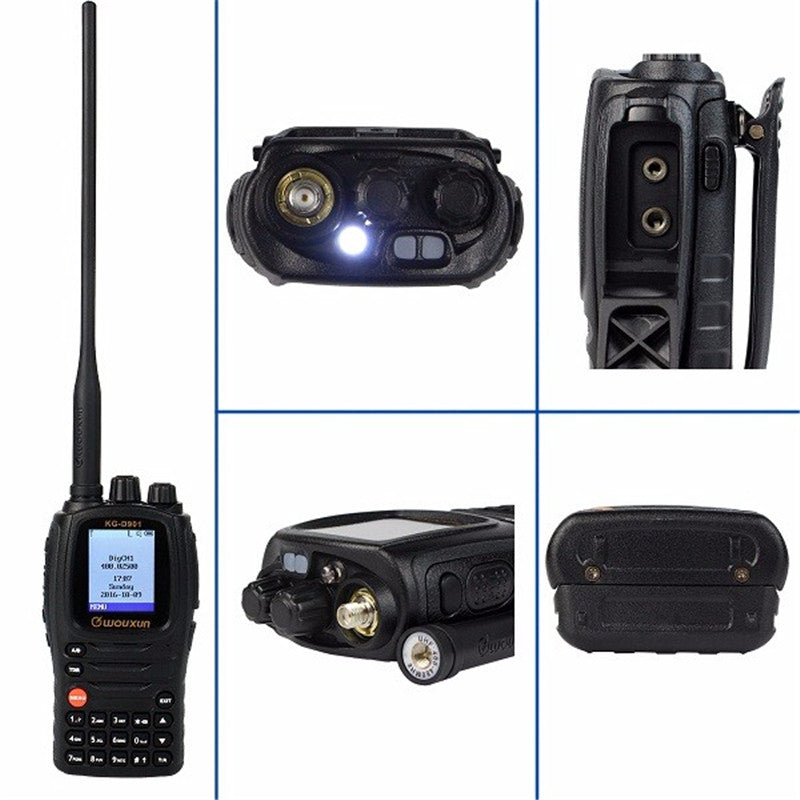

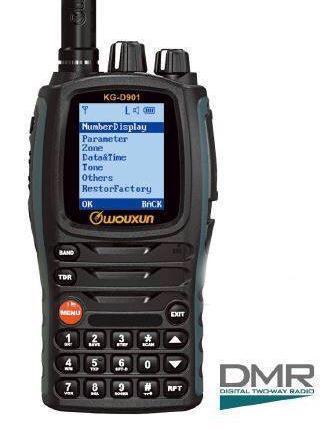

WOUXUN KG-D901 DMR UHF NEW VERSION
WOUXUN KG-D901 DMR UHF NEW VERSION
Compatible with Motorola Tier I & II and Hytera DMR radios Digital protocol ETSI TS 102 361-1, -2, -3 TDMA Digital Protocol ETSI TS 102 361-1, -2, -3
Description of Features:
English Voice Guide
Power Save
VOX Function
Transmit Overtime Forbidden
Inner Microphone Gain
Low Voltage Voice Prompt
SOS Alarm
ANI ID
Scan Group Setting
Scan Channel Selection
Digital Encryption
LED Flash light
Multi-Function Program for Side keys
One Key Switch Digital / Analogue Mode
One Key Switch High / Low Power
PTT ID
English Typewriting
Contact Edit
English Menu
Remote Control
Remote Monitor
MSG Send and Receive
Intelligent Charger
Product Specifications:
Integral part
Mode: DMR
Frequency Range: 400-470MHz
Channel Spacing: Digital : 12.5KHz
Channel number: 1024
Zones: 64x
Standard Package: 2000mAh , Lithium-ion
Working temperature: -20℃～+50℃
Storage temperature: -40℃～+80℃
Working Voltage: 7.4VDC
Working Currency: < 1300mA
Weight: 261 g
Size: 65 x 33 x 124 (mm)
Receiver
Frequency Stability: ±2.5ppm
Inter-modulation: 65dB
Co-channel Rejection: -8dB@12.5KHz
Spurious Inhibition: -57dBm@<1GHz , -47dBm@>1GHz
Block: 84dB
Adjacent Channel Selectivity: 60dB@12.5KHz
Spurious Response: ≥70dB
Regulated Audio Power: 1W
Digital Sensitivity: 0.3µV / -117.4dBm(BER 5%) , 0.7µV / -110dBm(BER 1%)
Receiver (wide/narrow)
Transmission Power: ≤5W
FM Noise: 40dB@12.5KHz
Transmission Spurious: -36dBm@<1GHz , -30dBm@>1GHz
Adjacent Power: -60dB@12.5KHz
Bandwidth Limit: 2.5KHz@12.5KHz
Spare Time Slot Power: -57dBm
Modulation Characteristics: +1dB~-3dB
Digital Transmission Bit Error Rate: ≤3%
Output Power: ≤5W
4FSK Digital Modulation Method: 12.5KHz(data only):7K60FXD
12.5KHz(data+voice):7K60FXE
