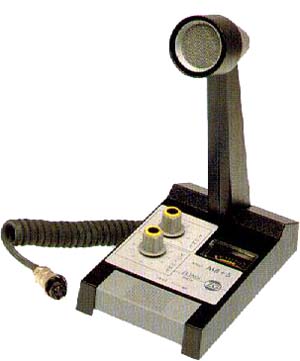

Zetagi MB plus 5

Zetagi MB+5

GENERAL:
The MB+5 has been realized for specific use in the field of communications.
It has a high gain amplifier (35dB) and a volume compressor which make it different to any conventional microphones used up to now.
The high controllable output level is able to fully modulate any type of transmitter.
It has an excellent timbre which can be personalized thanks to a special equalizer.
With the VU-Meter incorporated it is possible to have a constant control of the modulating signal level.
The 5 wires connection cable allows compatibility of Tx Rx switching with any type of transceiver.

FEATURES, FUNCTIONS, SPECIFICATION:
-Impedance: 0 - 5 K Ohm
-Frequency: 250 - 3500 Hz
-Max. output level: -23 dB adjustable (0 dB equal to 1 V/uB)
- 4 pin

-Power supply: 9 VDC (standard battery 6LR61) (Not included)
-Dimensions: 95x160x230mm
-Weight: 1.1 Kg
-Electret cartridge
-With tone regulation an VU meter
